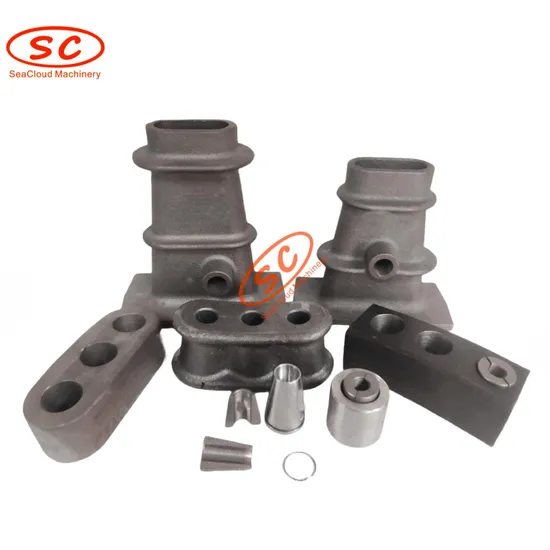

Mine Single Hole Anchor Cable Anchorage Prestressed Anchorage Prestressed Circular Tensioning Anchorage

Products

Mine Single Hole Anchor Cable Anchorage Prestressed Anchorage Prestressed Circular Tensioning Anchorage

Mine Single Hole Anchor Cable Anchorage Prestressed Anchorage Prestressed Circular Tensioning Anchorage

Product Description YJM Tensioning System has been widely adopted by modern construction, mainly used in pre-tension or

Send your inquiry

DESCRIPTION

Basic Info.
Material Metal
Finish Bright(Uncoated), Longer Life Ticn
Surface Treatmen Hot Dipped Zinc Coating
Anchorage Shape Round or Flat
Dimension for 12.7mm, 12.9mm, 15.1mm, 15.9mm. PC Strand
Usage Building Industry
Shape Round Shape
Size Customized Sizes
Transport Package Wooden Case
Specification mm
Trademark Winina
Origin China
Production Capacity 10000pieces/Year
Product Description
Product Description

YJM Tensioning System has been widely adopted by modern construction, mainly used in pre-tension or post-tension for concrete structures and building materials.

YM Series products are composed of tensioning anchors, holding anchors, and connectors. It can lock the steel strand wires on/under classes of 2000Mpa standard strength, usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.

Mine Single Hole Anchor Cable Anchorage Prestressed Anchorage Prestressed Circular Tensioning Anchorage

Technical Parameter
Technical data of YJM13 Anchorage
SpecificationAnchor HeadBearing PlateDuctSpiral ReinforcementStressing Jack
ΦABSquareRoundΦE(ID)ΦFHΦGN
C*DΦC*D
YJM13-1384080×10-35803063QYC270
YJM13-27642115×80120×80451204083YDC1100
YJM13-38342120×80130×805012040103YDC1100
YJM13-48742130×87135×855013550103YDC1100
YJM13-59742140×92140×1005514050104YDC1100
YJM13-610745150×97150×1256016050124YDC1100
YJM13-710745150×97150×1256016050124YDC1100
YJM13-811745165×115165×1356017050124YDC1500
YJM13-912748175×125175×1407018050124YDC1500
YJM13-1013648180×130180×1508020050144YDC2500
YJM13-1113850180×130180×1508020050144YDC2500
YJM13-1214350190×140190×1508021050145YDC2500
YJM13-1314753190×140190×1508021050145YDC2500
YJM13-1415353195×150200×1608022050145YDC2500
YJM13-1515755195×150200×1609022050145YDC2500
YJM13-1616755210×160210×1859024060166YDC2500
YJM13-1717258220×175235×1859024060166YDC3500
YJM13-1817658235×175235×1859026060166YDC3500
YJM13-1917658235×175235×1859026060166YDC3500
YJM13-2019660270×185260×2009027060166YDC3500
YJM13-2119663270×185260×2009027060166YDC3500
YJM13-2219665270×185260×2009027060186YDC3500
YJM13-2320665295×245275×26010028060186YDC4000
YJM13-2420668295×245275×26010028060186YDC4000
YJM13-2521668300×260275×29010029060186YDC4000
Technical data of YJM15 Anchorage
SpecificationAnchor HeadBearing PlateDuctSpiral ReinforcementStressing Jack
ΦABSquareRoundΦE
(ID)
ΦFHΦGN
C×DΦC×D
YJM15-1434680×1280×2035803084QYC270
YJM15-28348130×85135×805012040104YDC6500
YJM15-38748130×87135×855012040104YDC650
YJM15-49748140×92140×1005014050104YDC1100
YJM15-510748150×97150×1205515050104YDC1100
YJM15-612250165×115165×1357017050124YDC1500
YJM15-712250175×125175×1357017050124YDC1500
YJM15-813753180×130180×1508019050124YDC2500
YJM15-914753190×140190×1508020050124YDC2500
YJM15-1015753195×150210×1609021060144YDC2500
YJM15-1115755210×160210×1609021060144YDC2500
YJM15-1216755210×160210×1859023060144YDC2500
YJM15-1317755220×175210×1859023060144YDC3500
YJM15-1417758225×175235×1859024060144YDC3500
YJM15-1518760235×175235×1859026060165YDC3500
YJM15-1618760240×175235×1859026060165YDC3500
YJM15-1719763250×185265×20010028060165YDC4000
YJM15-1819763270×185265×20010028060165YDC4000
YJM15-1919763270×185265×20010028060165YDC4000
YJM15-2021768295×245285×26012029060165YDC5000
YJM15-2121770295×245285×26012029060165YDC5000
YJM15-2221770295×245285×26012029060185YDC5000
YJM15-2323773310×260320×26012032060185YDC5000
YJM15-2423775310×260320×26012032060185YDC5000
YJM15-2523778310×300320×30012033070185YDC6500
Details & FeaturesThe prestressed anchor is generally composed of four parts, anchor ring, clamp, cushion plate, and screw bar. It is suitable for anchors used for prestressed tension of concrete in engineering construction. In general, it is often used in bridge construction, pre-installed positioning, and then pouring concrete, buried at both ends of concrete, that is, the two ends of the bellows, to set the end face when the stability of the jack tension.
